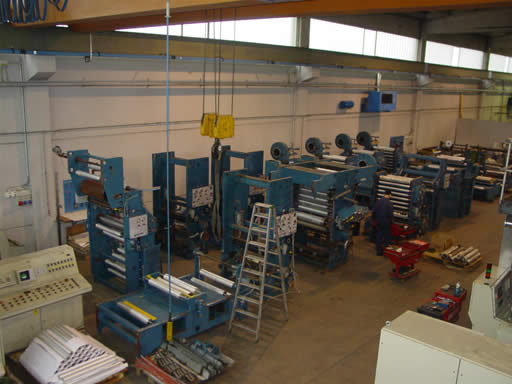

Cerutti R18-3

Machine completely rebuilt in 1990
Web width max.: 820mm
Printing width max.: 800mm
No of colours: 9
Printing cylinder sleeves: 870mm
Unwind diameter: 1000mm
Rewind diameter: 800mm
Line speed max.: 200 m/min
Heating by steam 6/8 Bar
1st and 9th Units independent or in line.
No. 3 units may print front or back ( 1st - 8th - 9th )
Last unit may treat cold seal and/or hot melts.

-Corona treatment (both sides): MERO – Lucca (IT)
-Register control long. And transv.: Grafikontrol – Milan (IT) Mod. CR7 updated to CR 13
-Web inspection by camera: RGB Systems – Belgium
-Melting Tank for hot melt

Printing materials: - Paper and laminates with aluminium until 250 g/m2
- Polyester 12 MY,
- Polypropylene from 20 MY

N. 3 Series of pressure rollers and other spare parts

Electric power installed: KW 260 – 380 VOLTS 50 HZ
