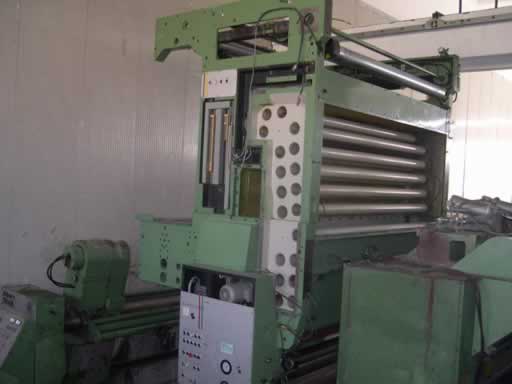

| Maker: |
ALBERT FRANKENTHAL
Germany |
| Type: |
TR6B/240 |
| Year
huile: |
1989 |
| Max
paper web width: |
2.400 mm /
94.49'' |
| Cylinder
circumference: |
840-980
mm / 33,07' - 38,58'' (4 pages around)
1.260 - 1470 mm / 49,60 - 57,87'' |
| Max
mech. speed: |
approx. 42.000
rev/hr with 4 pages around
approx. 28.000 rev/hr with 6 pages around |
| Max
production speed: |
approx. 38.000
rev/hr with 4 pages around
approx. 25.500 rev/hr with 6 pages around |
| The
machine consists of: |
| - 1
double reel stand including |
| |
- webbing-up
device in support structure
- electronically controlled infeed
- web edge guiding
- reel diameter 1.2500 mm / 49,21'' |
- 8
gravure printing units with Nipco pressure rollers and print assist HELIOFURN
(modification 1992)
- 1 folder superstructure Rapid "S" for max ribbon width of 500 mm/
19,69'' equipped with: |
| |
- sandwich group
pulling rollers
- device to pre-select machine width and ribbons widths
- register rollers
- ribbon register control BOBST (year built 1994) |
| - 2
variable size folders (back to back), system 5:4 for 4 and 6 pages around, collect
and non-collect max ribbon width: 400 mm / 15,75'' with 1 exit each |
|
| The
machine is furthermore equipped with: |
-
1 reel loading platform, motor driven
- 8 ink circulation system including ink cooling and ink blending system from TANKMULLER
- viscosity control Opticolor
- 1 BOBST Registron colour register control with ribbon register
- 8 fire extinguisher devices with detectors
- 1 webbing-up device
- 8 printing cylinder alignment mechanisms for setting zero position
- 7 sets of manually controlled steam bars for web with control
- 8 valves for the cooling of the back-up rollers, impression rollers, including insulation
of the connections at the printing part
- 8 temperature controls for the ink cooling
- 1 blower unit for turner bars
- 1 paper dust extractor for the slitting positions and for the crosscutter device folder |
| Modification
of the electrical control to system S5 (makers SIEMENS) in 1996: |
-
double reel stands
- ribbon rollers in folder upper contruction
- main drive motor |
| Production
possibilities with one folder: |
see
enclosure |
| Condition: |
as
is |
| Electrics: |
220/380
V, 50 cycles
2 main drive motors SIEMENS, each 210 kW |
| Delivery
time: |
approx
2nd quarter 2004 |
| Price
as fot net: |
|
| Terms
of payment: |
30%
down payment when placing the order |
| |
70%
before beginning of dismantling |
|
